Overview:

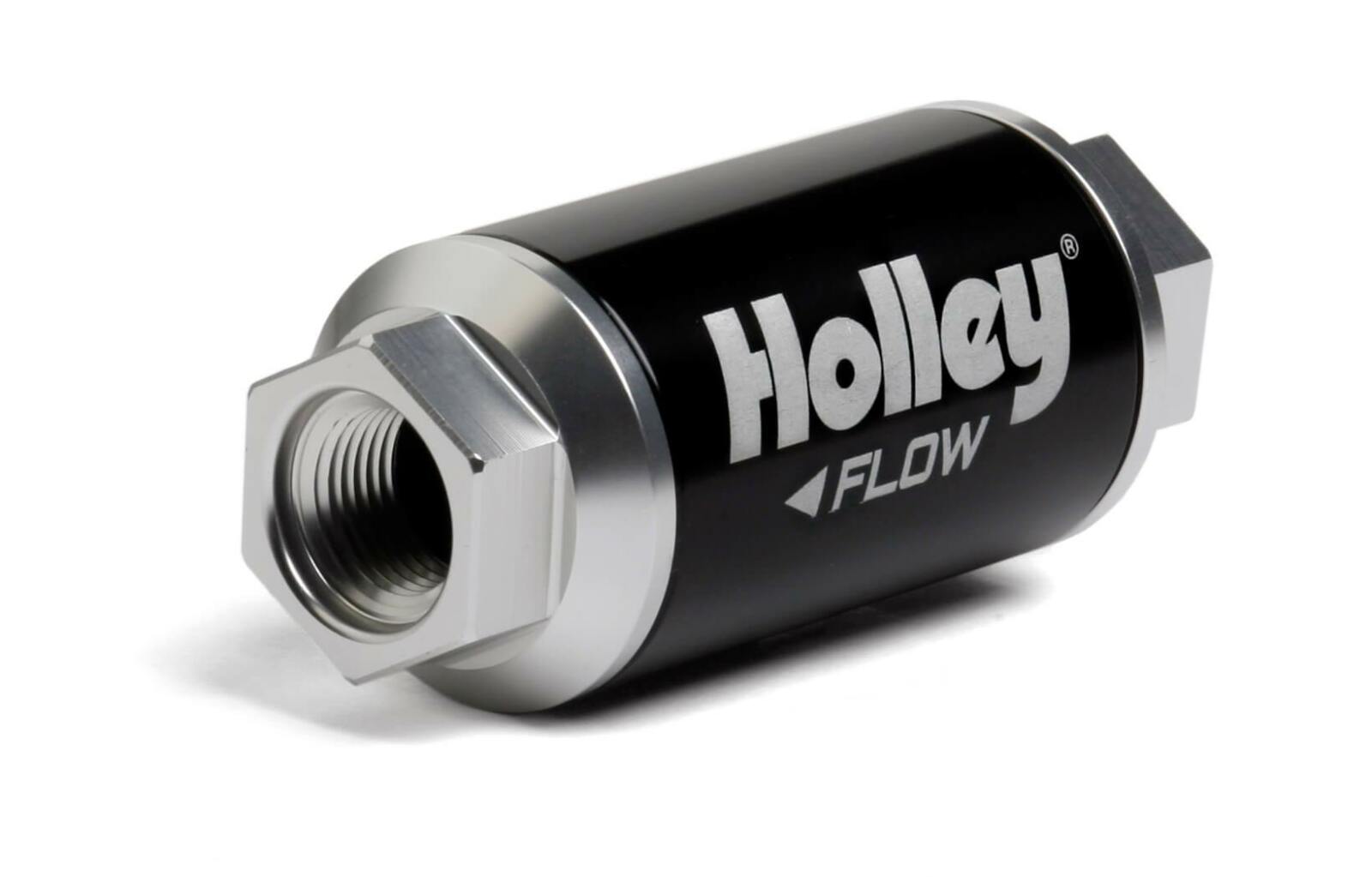

Holley’s new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. The Holley 162-563 fuel filter features 3/8″ NPT inlet and outlet ports. Replacement elements are also available.
Features:
- Black anodized body and clear anodized end caps for corrosion resistance and good looks
- Female 3/8” NPT inlet and outlet
- 40 micron stainless steel woven mesh element
- Measures 5” long and 2” diameter
- Recommended as a post filter (after the pump) in carbureted applications
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley |
|---|---|
| Color | Black Anodized |
| Diameter | 2 inch |
| Element Material | Stainless Steel Woven Mesh |
| Emission Code | 5 |
| Filter Type | Post Filter |
| Fuel Type | Gasoline / Diesel / E85 |
| Inlet Size | 3/8 inch NPT |
| Length | 5 inch |
| Material | Aluminum |
| Micron | 40 Micron |
| Outlet Size | 3/8 inch NPT |
| Product Type | Fuel Filter |
| Warranty | Limited 90 Day |
