Hooker LS Turbo Exhaust Manifolds 8510HKR

Overview

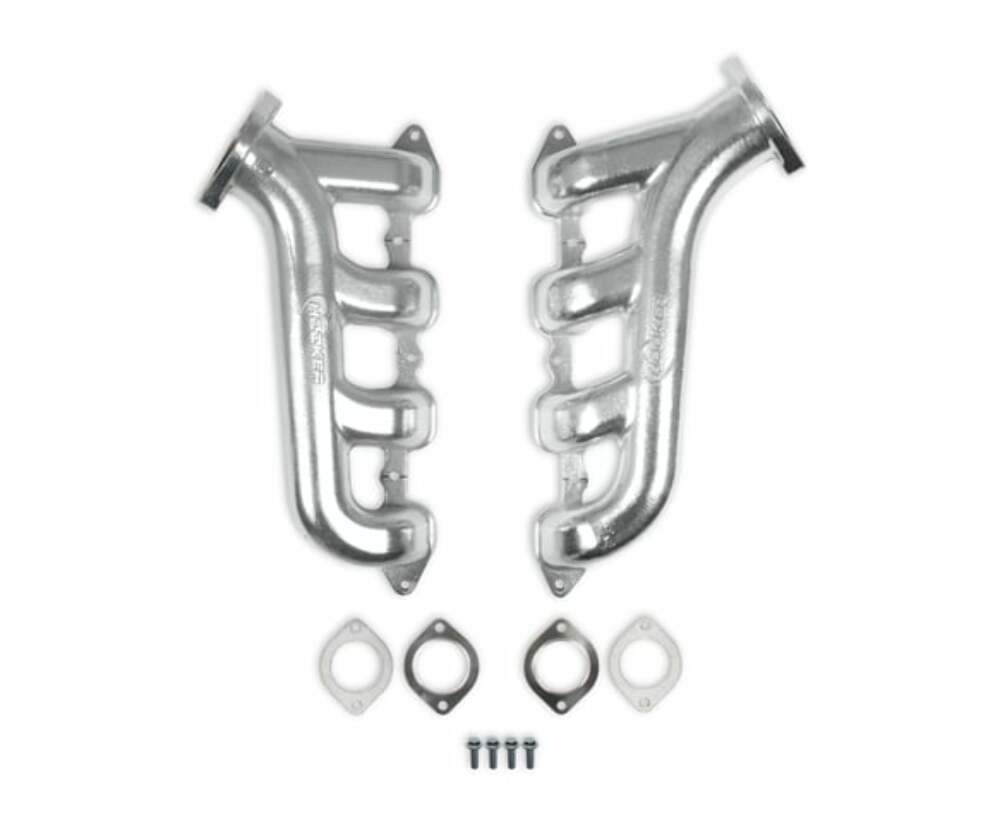

Holley’s new LS Turbo Exhaust Manifolds are made from cast iron and allow a simpler and easier way to add a turbo to your muscle car. These manifolds are made from High-Silicon-Moly ductile iron and are much more durable & retain more heat than fabricated headers. The manifolds kits include v-band clamps & flanges, heater hose heat shield, and header bolts. A turbo cross-over tube is used to connect the two manifolds (sold separately). Choose the cross-over tube based on the transmission (and bell-housing) for optimal fit and ground clearance. The cross-over tubes are made from 16-gauge, mandrel bent 304 stainless steel and include a flex joint and v-band flanges welded on for an easy bolt-on fit. A universal cross-over component kit is also available for custom applications that need something a little different (requires fabrication & welding). These parts work with most common LS swap parts (i.e. motor mounts, swap oil pan, and accessory drive systems) & provide the basic building blocks needed to complete a custom turbo system for your GM LS engine

Features

• Designed to Integrate w/ Most Common LS Swap Applications & Components
• 3 inch V-Band Outlet – 2.25 inch V-Band Crossover Connections
• Heat Shield to Protect Heater Hoses
• Hardware Included – Stainless Steel V-Band Clamps, V-Band Flanges & Header Bolts
• High-Silicon-Moly Ductile Iron Construction Retains Heat and is More Durable than Headers

Application

• Does not fit 2004-’06 GTO starter & bellhousing. Requires removal or relocation of OE A/C Compressor.
• 2007 – 2013 Chevrolet Avalanche
• 2009 – 2012 Chevrolet Colorado
• 1997 – 2015 Chevrolet Corvette
• 1997 – 2014 Chevrolet Express 1500
• 2006 – 2009 Chevrolet Impala
• 2006 – 2007 Chevrolet Monte Carlo
• 1997 – 1999 Chevrolet Silverado
• 1999 – 2015 Chevrolet Silverado 1500
• 2001 – 2006 Chevrolet Silverado 1500 HD
• 1999 – 2015 Chevrolet Silverado 2500
• 2001 – 2015 Chevrolet Silverado 3500
• 2003 – 2006 Chevrolet SSR
• 2014 – 2015 Chevrolet Suburban
• 1997 – 2015 Chevrolet Tahoe
• 2003 – 2006 Chevrolet Trailbrazer Ext
• 2009 – 2012 GMC Canyon
• 2003 – 2006 GMC Envoy XL
• 1997 – 2014 GMC Savana 1500
• 2007 – 2015 GMC Sierra
• 1999 – 2015 GMC Sierra 1500
• 2001 – 2006 GMC Sierra 1500 HD
• 2001 – 2015 GMC Sierra 2500 HD
• 2001 – 2006 GMC Sierra 3500
• 1997 – 2015 GMC Yukon
• 2015 GMC Yukon XL
• 1999 – 2015 Cadillac Escalade
• 2004 – 2015 Cadillac CTS
• 2003 – 2009 Hummer H2
• 2008 – 2010 Hummer H3
• 2005 – 2008 Pontiac Grand Prix
• 2008 – 2009 Pontiac G8
• 2004 – 2007 Buick Rainier
• 2008 – 2009 Buick LaCrosse
